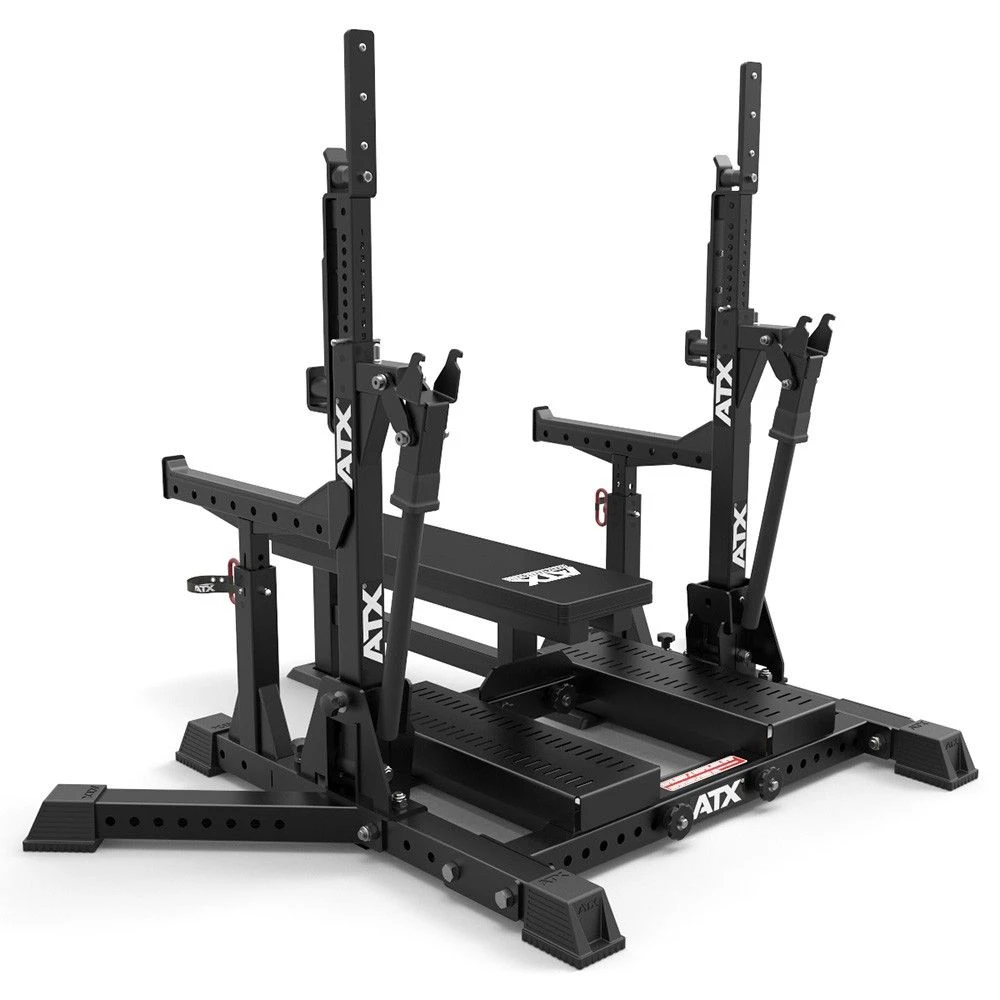

ATX Competition Powerlifting MEGA COMBO Rack CO-RACK

The ATX ®  Competition Combo Rack is a 2-in-1 competition weight bench and squat rack specifically designed and manufactured for professional squats and bench press.

The extremely robust and stable design impresses with a net weight of 238 KG for the entire rack with bench, and 124 KG only for the squat rack, without noting the steels are 8x8cm, 7x7cm and 5x5cm, with wall thicknesses of 3mm and 4mm.
The rack can be quickly and easily converted to virtually all body sizes. For transport, the rack can be disassembled in a few steps.

– Certified according to EN 20957 I.II.IV Class S –
– Quality Products Designed in Germany –

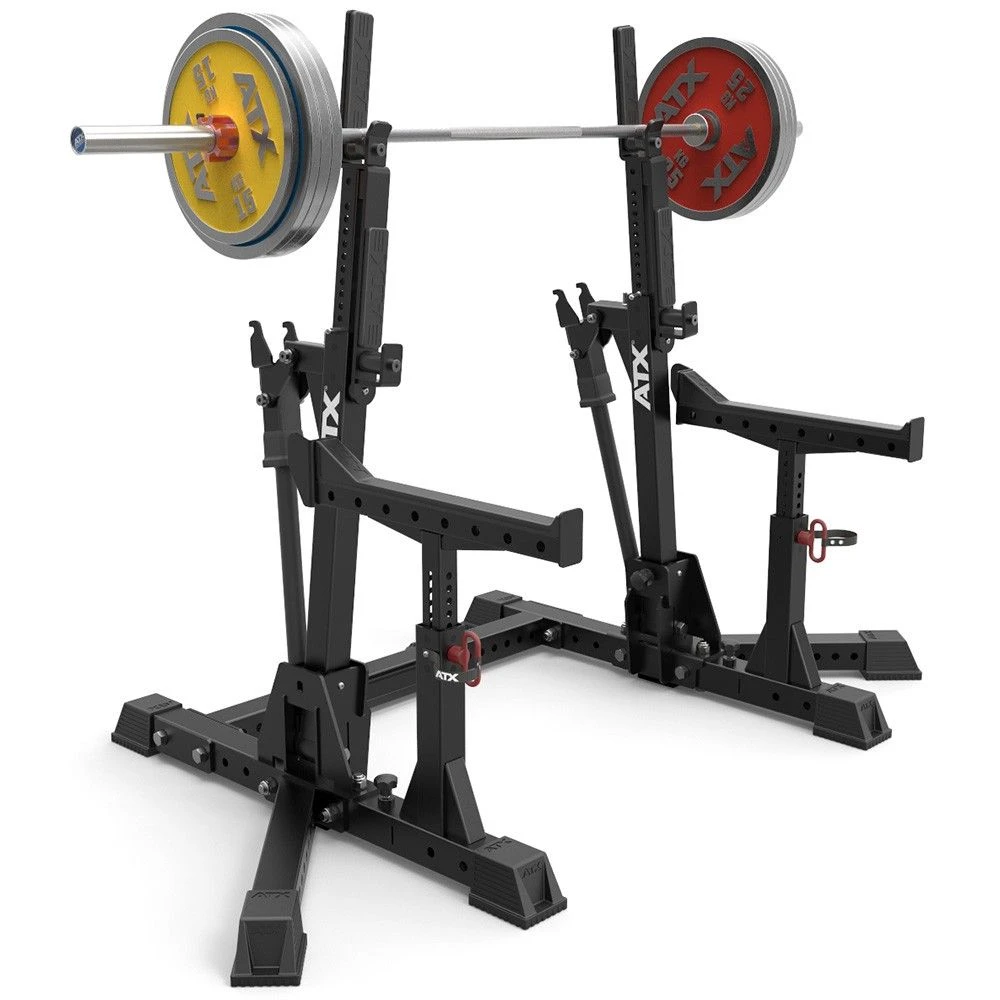

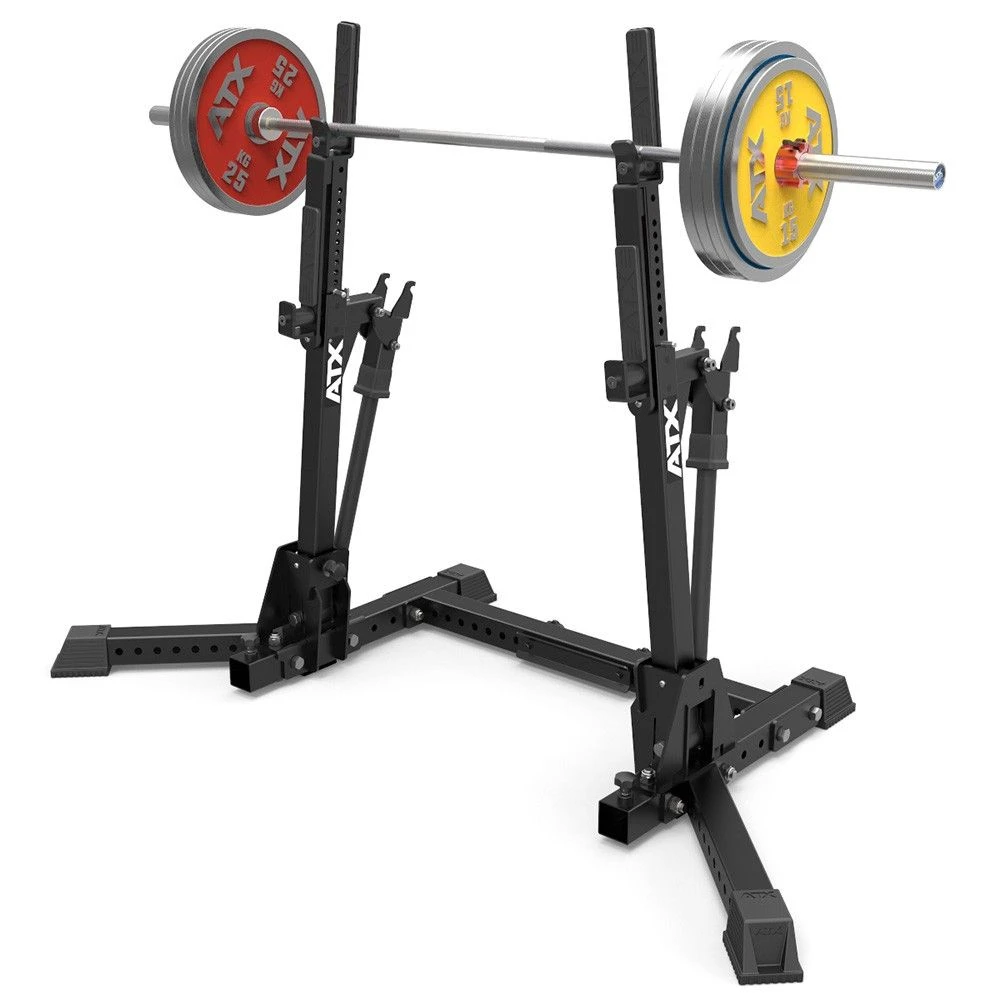

Telescopic barbell holders:
At the core of the rack forming the two adjustable height telescopic bar rests.
Each has two pairs of J-hooks, the lower as a rule for the bench press, and the top J-hooks for for squats.
In the J-hooks, there are mounted cylindrical rollers, in order to conveniently align the centre of the bar for the user. These are made of PA material, and are fitted with needle bearings. When needed, the roles are interchangeable.
The rollers in the upper J-hooks are provided with a centred groove, the rollers in the lower J-hooks are continuously cylindrical.
Height of the J-hook for bench press is 755mm to 1330mm.
Height of the J hooks for squats is 1175mm to 1750mm. Each to the bottom edge weight bar.
Furthermore, the J-hooks are equipped with an impact guard to protect the knurling of the weight bars.
The telescopic adjustment PA is provided with sliders for easy adjustment and to protect the material.
The width between the telescopic shelves is 110cm.
The telescopic barbell holders can be precisely positioned, or be inclined by 6.5 ° inward to allow the athlete the barbell with a wide grip to hold it.

Arm lifting system:
The height is adjusted via a lever arm lifting system. The lever arm lifting system enables the adjustment of the bar rests without needing the bar or weights to be removed.
The adjustments are in 2.5 cm laser-cut increments.
The package includes 8 locking and lifting pin (4 of which as a reserve).

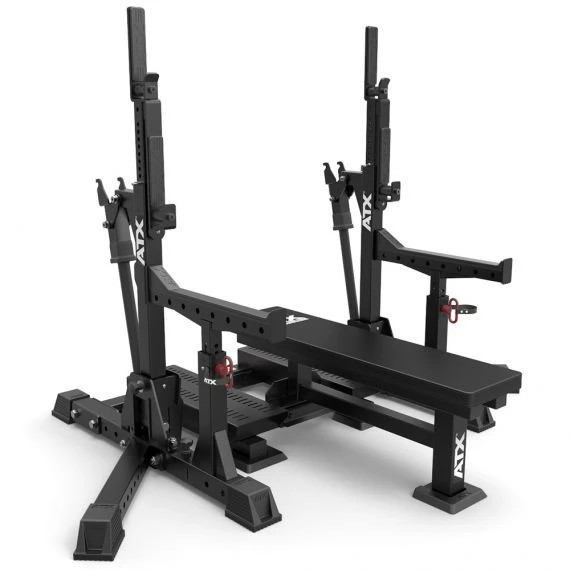

Bank and platform:
The Bank and the pedestal are autonomous components that can be within one minute to the rack coupling and uncoupling to switch between squats and bench press.
For loosening and tightening only two Klemmknäufe are required which are provided with a rugged coarse thread, and only slightly must be dissolved to separate the parts.
The bank has a sleeping area of 122 cm length and 30 cm wide, and a height from the floor of 45cm.
The artificial leather is a special version with an extremely grippy and non-slip surface.
The platforms each have a length of 75cm and a width of 25cm and a height of 18cm from the floor.
The size of the spotter platform allows the spotter optimal positioning, and, in conjunction with the perforated surface, a secure and stable footing.

Safety Booms:
The safety booms attached and disconnect with a clamping knob. The connector provides an absolutely secure and reliable connection.
The safety booms are equipped with integrated bar protectors and a “Face Safer” barrier.
The length of the safety booms is 66cm. The distance between is 114cm.
The smallest height is 61,5cm and the maximum height is 89cm from the floor to the upper edge of safety..
The adjustment grid is 2.5 cm, as per J-Hooks, and has a laser-cut for easy scaling of the set heights.
The telescopic arms are provided with PA glides, for easier adjustment and to protect the material.

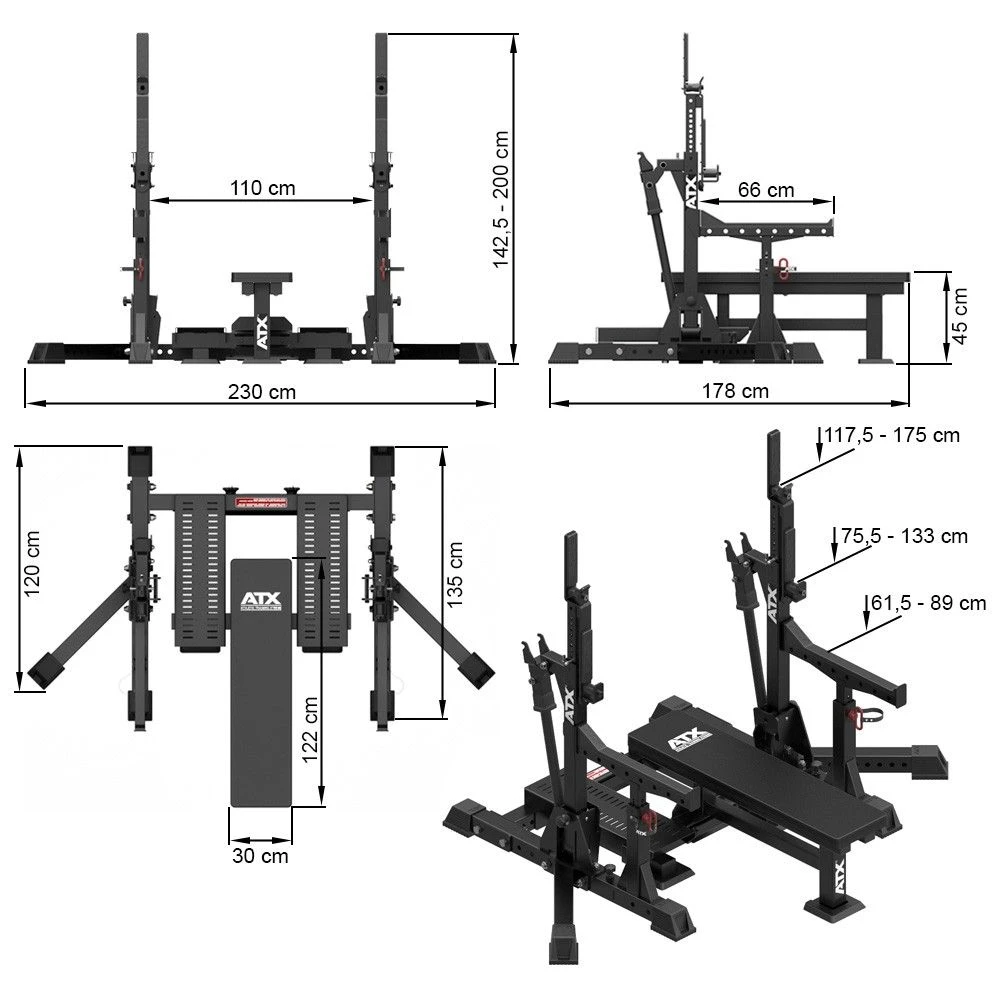

Dimensions &. weights:

• Depth: 178 cm
• Width: 230 cm
• Height: 142.5 cm – 200 cm
• Weight: 238 KG

resilience:

Load rack: 750 KG

Colour:
Black

Delivery:

ATX Combo Rack

ATX Calibrated Competition Weight Plates and Bar are sold separately. If you require a Quote on an entire set up, please get in touch – it’s what we do! 🙂

Delivery disassembled for self-assembly – delivery on pallet by freight.
