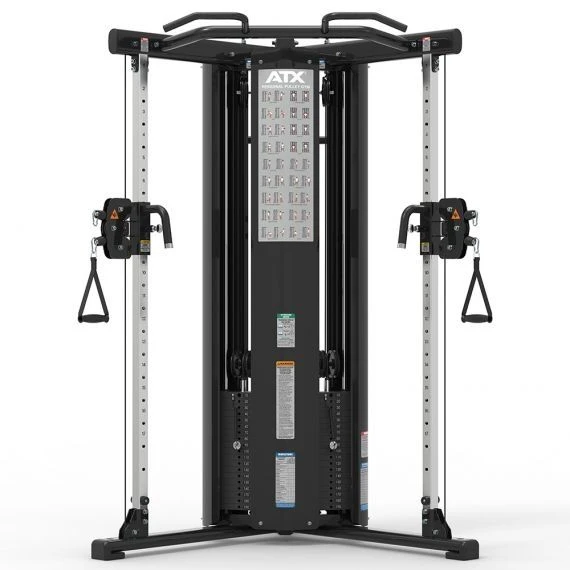

ATX Studio Compact Dual Adjustable Pulley (DAP) – FTX-9001

The compact ATX Functional Trainer FTX-9001 is space-saving and suitable for professional applications in gyms. This cable station has two height-adjustable pulleys and is equipped with two weight stacks of 86 kg each. The weight stacks have an adjustable weight ratio of 2:1 or 4:1, allowing the weight to be fine-tuned in steps. For example, a selected weight of 20 kg at a ratio of 2:1 will feel like 10 kg and at a ratio of 4:1 it will feel like 5 kg. The weight transfer can be adjusted by using a single cable or by linking both cables together and using them at the same time. This high-quality device has a premium finish with a matte black powder coating. The device is easy to use and has smooth movements for a comfortable workout.

Details of the ATX Compact Dual Adjustable Pulley (DAP):

• Compact deisgn.
• Intergrated pull-up bar.
• Pulleys with double ball bearing.

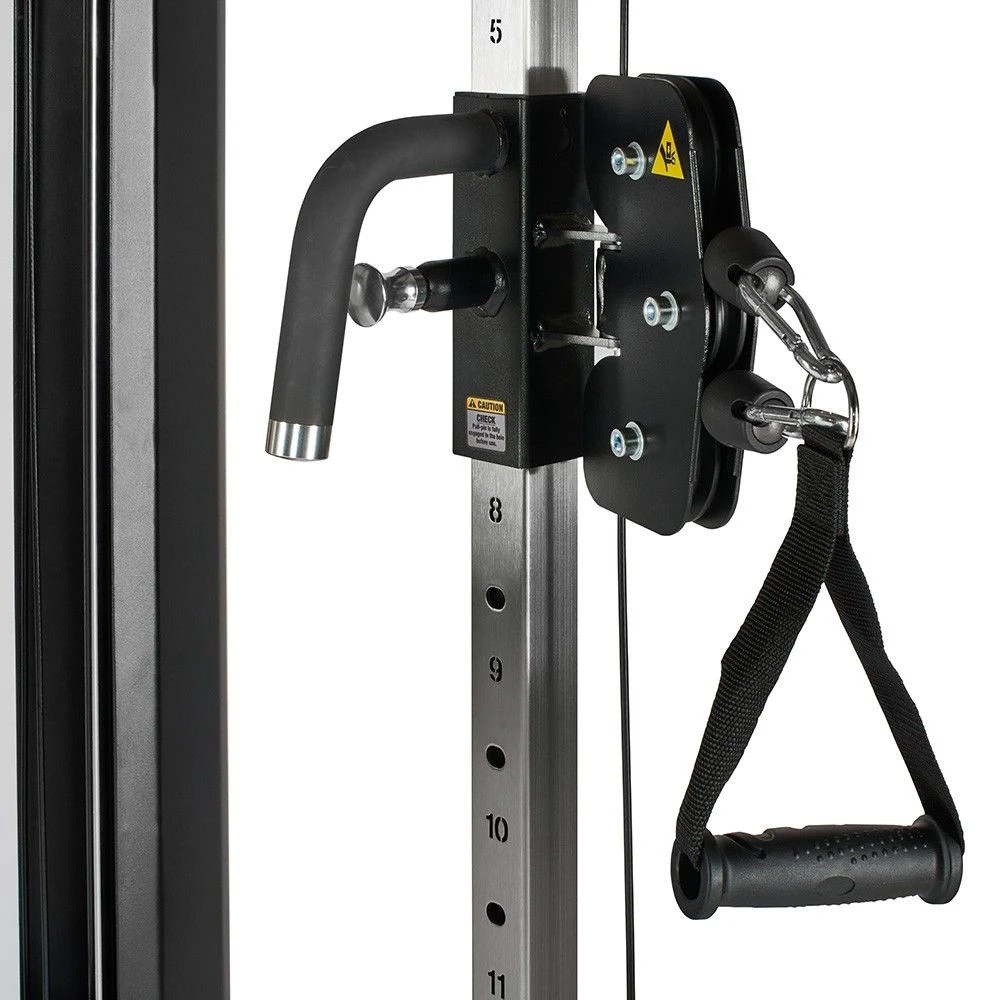

• The pulleys are quickly and easily height adjustable in 17 increments.
• Highly flexible steel wire with plastic coating, stretch-proof.
• With large rubber feet, floor protective and ant-slip.

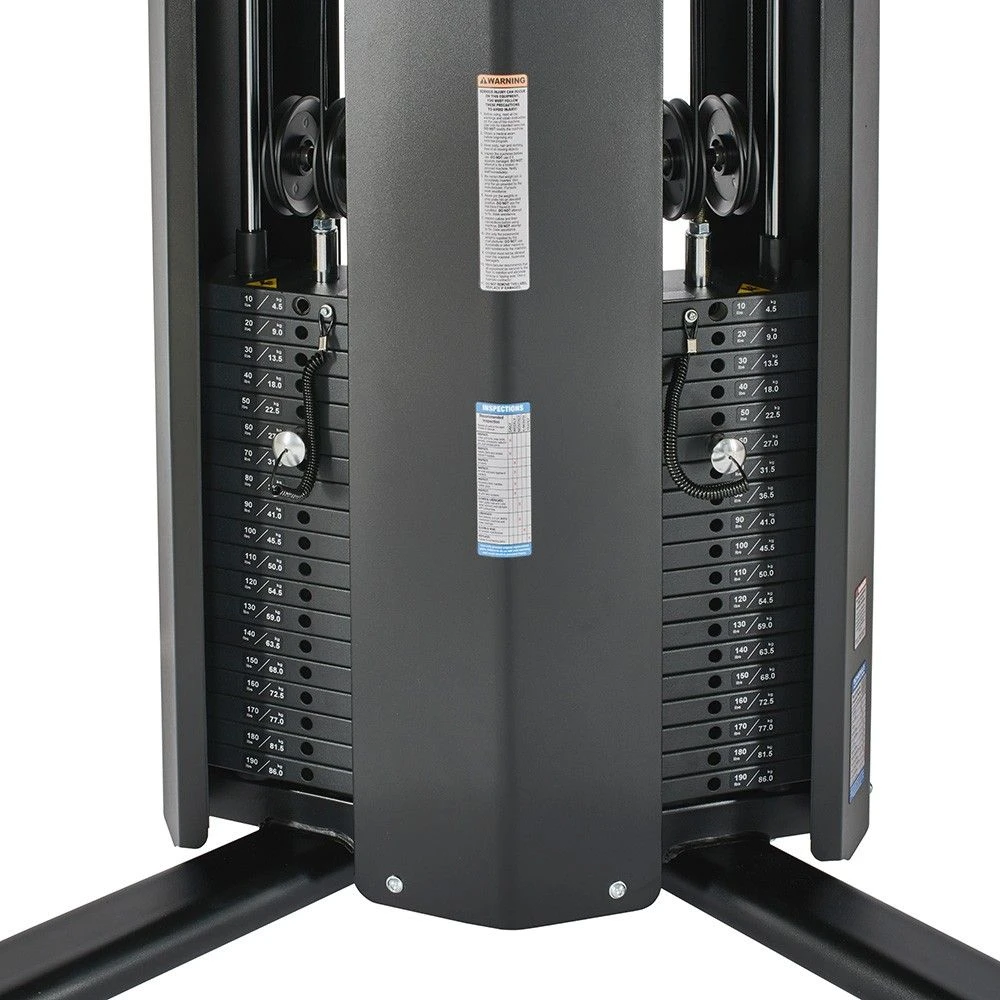

• Equipped with two weight stacks of 86kg per stack.
• Operating a standard 2:1 pulley ratio, but can be extended to 4:1 using the double-clips, for finer adjustment.
• Includes 6 handles (carabiners included):
• 1 x long bar (attaches both sides).
• 4 x stirrup handles (2 short-straps, 2 long-straps).
• 1 x short straight bar cable handle.

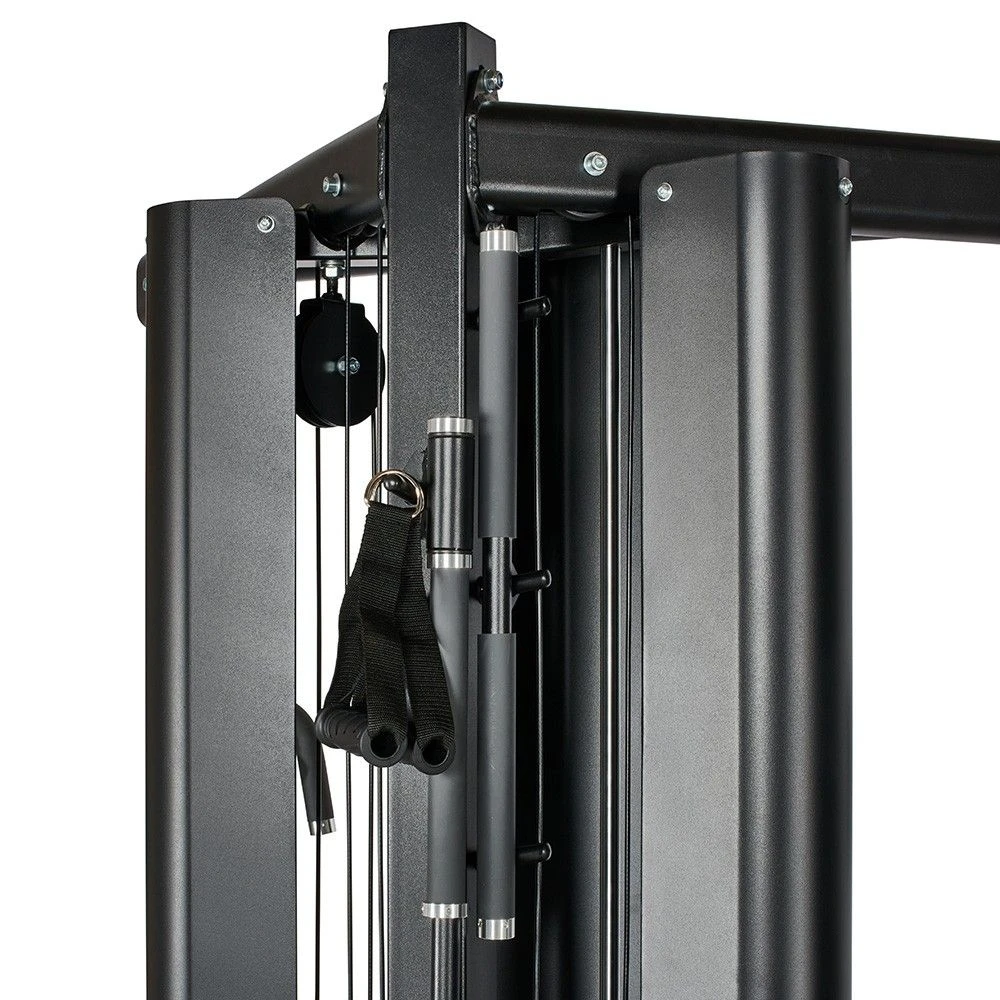

• Handles stow away at rear of frame.
• Colour: Black frame with chrome rails.
• Depth x Width x Height: 115 x 163 x 221h cm. TGR NOTE: ATX state 221cm as a height, but it seems to be 212cm instead 🙂
• Certified to EN 20957 I.II.IV – S commercial standard.
